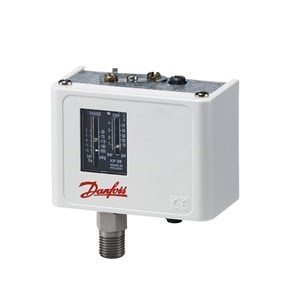

Pressure switch KP36
Product Name:Pressure Switch
Type:KP36
Reset Function:Auto
Contact Function:SPDT
Pressure Connection Size:1/2
Pressure Connection Type:G
Pressure Male/Female:Male
Product Details
| Gross weight | 0.37 Kg |
| Net weight | 0.33 Kg |
| Packing format | Multi pack |
| Pressure connection size | 1/2 |
| Pressure connection standard | ISO 228-1 |
| Pressure connection type | G |
| Pressure Male/Female | Male |
| Pressure range category | Medium pressure |
| Pressure sensing element | Bellows |
| Product accessories | Switches accessories |
| Product description | Pressure Switch |
| Product family name | KP Pressure switch |
| Product Group | Switches and thermostats |
| Product name | Pressure switch |
| Product type | KP36 |
| Quantity per packing format | 36 pc |
| Regulation range [bar] Pe [Max] | 10.5 bar |
| Regulation range [bar] Pe [Min] | 1 bar |
| Regulation range [psig] Pe [Max] | 150 psig |
| Regulation range [psig] Pe [Min] | 14.5 psig |
| Reset function | Auto |
| Serviceable | No |
| UL approval file name | E31024 MH27572 |
| EAN | 5702428365345 |
| Amb. Temp. Note | 80 ℃/176 ℉ for max 120 min |
| Ambient temperature range [℃] [Max] | 65 ℃ |
| Ambient temperature range [℃] [Min] | -40 ℃ |
| Ambient temperature range [℉] [Max] | 149 ℉ |
| Ambient temperature range [℉] [Min] | -40 ℉ |
| Approval | CCC CE EAC LVD PZH RINA RMRS RoHS China c UL us UL353, CS C22.2 c UL us UL873, CS C22.2 |
| Contact function | SPDT |
| Contact rating | 120Vac,16FLA,96LRA,3APilotDuty 16 A resistive, single phase 240 V ac, 8 FLA, 48 LRA 8 A resistive, single phase 240V dc,12W pilot duty(0.05 A) |
| Differential [bar] [Max] | 4 bar |
| Differential [bar] [Min] | 0.7 bar |
| Differential [psi] [Max] | 58 psi |
| Differential [psi] [Min] | 10 psi |
| Electrical connection | Rubber cable gland |
| Electrical connection size | 6-14 mm |
| EN 60947 electrical properties | Insulation: 400V Pollution degree: 3 Rated impulse voltage: 4 kV |
| EN 60947 wiring properties | Flex, ferrules: 0.5-1.5 mm2 Flex, no ferrules: 0.7-2.5 mm2 Solid/stranded: 0.75-2.5 mm2 |
| Enclosure rating IP | IP30 |
| Enclosure rating Nema (~) | 1 |
| Max. test pressure [bar] Pe | 22 bar |
| Max. test pressure [psig] | 319 psig |
| Max. Working Pressure [bar] | 17 bar |
| Max. Working Pressure [psig] | 245 psig |
Digicon Automation Pvt Ltd is danfoss authorised dealer, distributor, and authorised channel partner of danfoss programmable controllers, danfoss pressure switch, danfoss temperature sensors, danfoss temperature transmitter located in Ahmedabad, Mumbai and Gandhidham provides danfoss pressure switch kp36.
