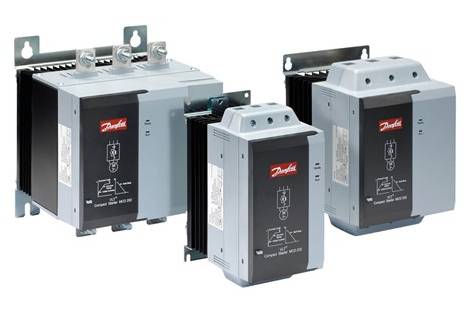

VLT® COMPACT STARTER MCD 200 SERIES
Compact But Powerful Soft Starters
Two Series Of Soft Starters That Provide A Total Motor Starting Solution For Motors Up To 110 KW. The MCD 201 Offers Efficient Motor-Starting Features, While The Extended MCD 202 Version Provides Enhanced Soft-Start Functionality And Additional Motor-Protection Features.
The Series Of Soft Starters Offer Easy DIN Rail Mounting For Sizes Up To 30 KW, 2-Wire Or 3-Wire Start/Stop Control And Excellent Starting Duty (4 X Le For 6 Seconds; Heavy Starting Ratings At 4 X Le For 20 Seconds). They Are Compatible With Grounded Delta Power Systems.
Supply voltages and power range
- 3 X 200-575 V...7.5-110 KW (200 A)
- 24 V AC Or DC/110-440 V AC
Features & Benifits
- Easy Connectivity For The Soft Starter To Ethernet/IP-Based Networks, Such As Rockwell PLC Systems
- Panel Space Can Be Saved Due To The Compact Size
- Installation Costs Are Minimized And Power Loss Eliminated Thanks To The Built-In Bypass
- More Starts Per Hour And A Higher Load Is Possible As A Result Of Advanced SCR Control Algorithms That Balance Output Waveform
- Overall Project Investment Is Reduced Due To Essential Motor Protections
- No External Cooling Or Oversizing Is Necessary Thanks To The Maximum Ambient Temperature Of 50°C Without Derating
